Product overview
An industrial tumble dryer is a heavy-duty laundry dryer machine that uses heated air circulation to reduce moisture content after washing and extraction. In a complete laundry workflow, it is commonly paired with a washer extractor so wet towels, sheets, uniforms, and workwear can move from washing to drying with balanced production capacity.

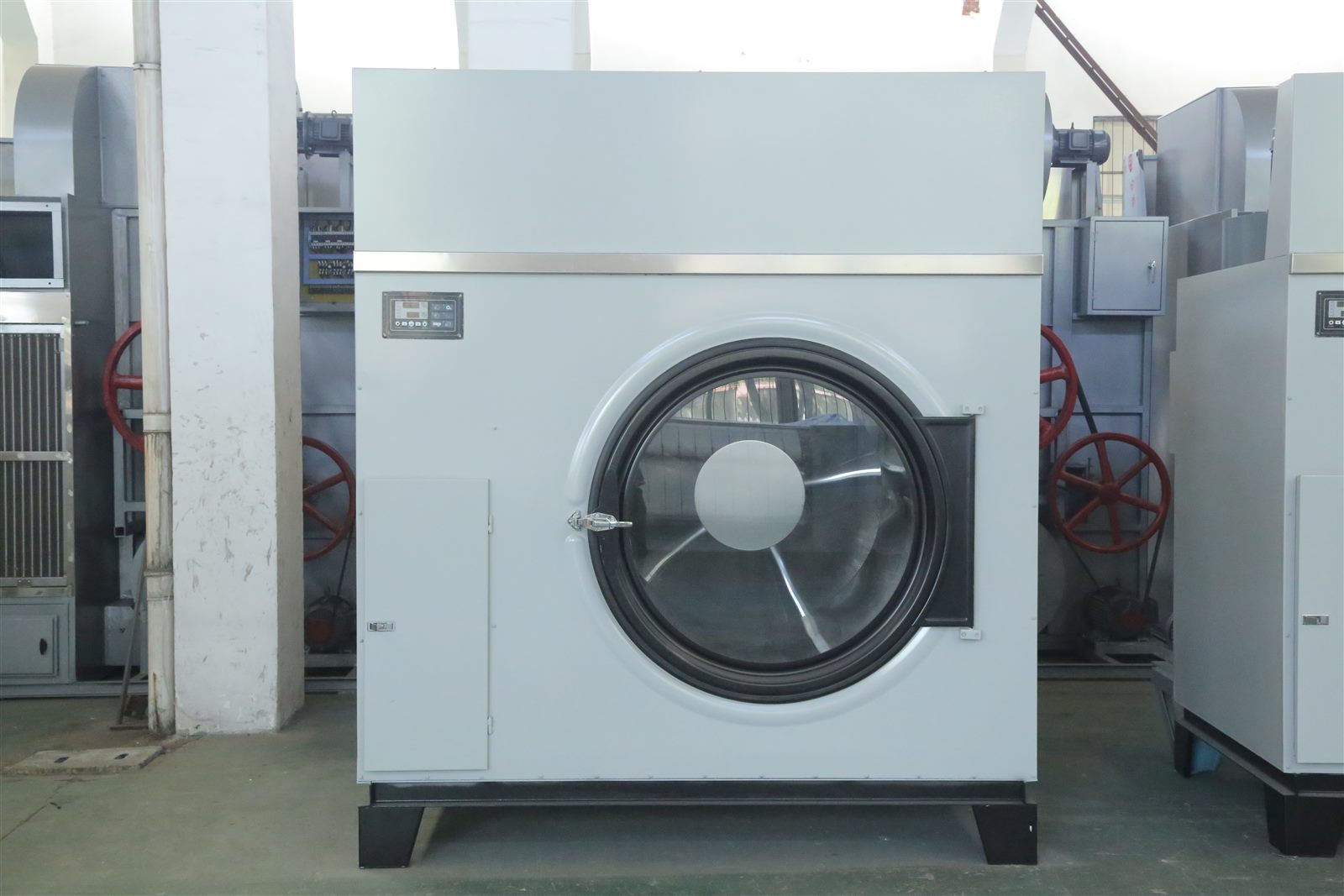

The HG Series tumble dryer is built for high-volume textile drying in hotels, hospitals, commercial laundry plants, factories, textile plants, schools, and uniform washing facilities. HAIDI supplies HG Series commercial tumble dryer equipment as part of its industrial laundry equipment range for buyers who need capacity matching, model advice, and quotation support from a laundry equipment manufacturer.
Key features
- Capacity range from 20kg to 200kg for small shops, hotel laundries, and central laundry plants.

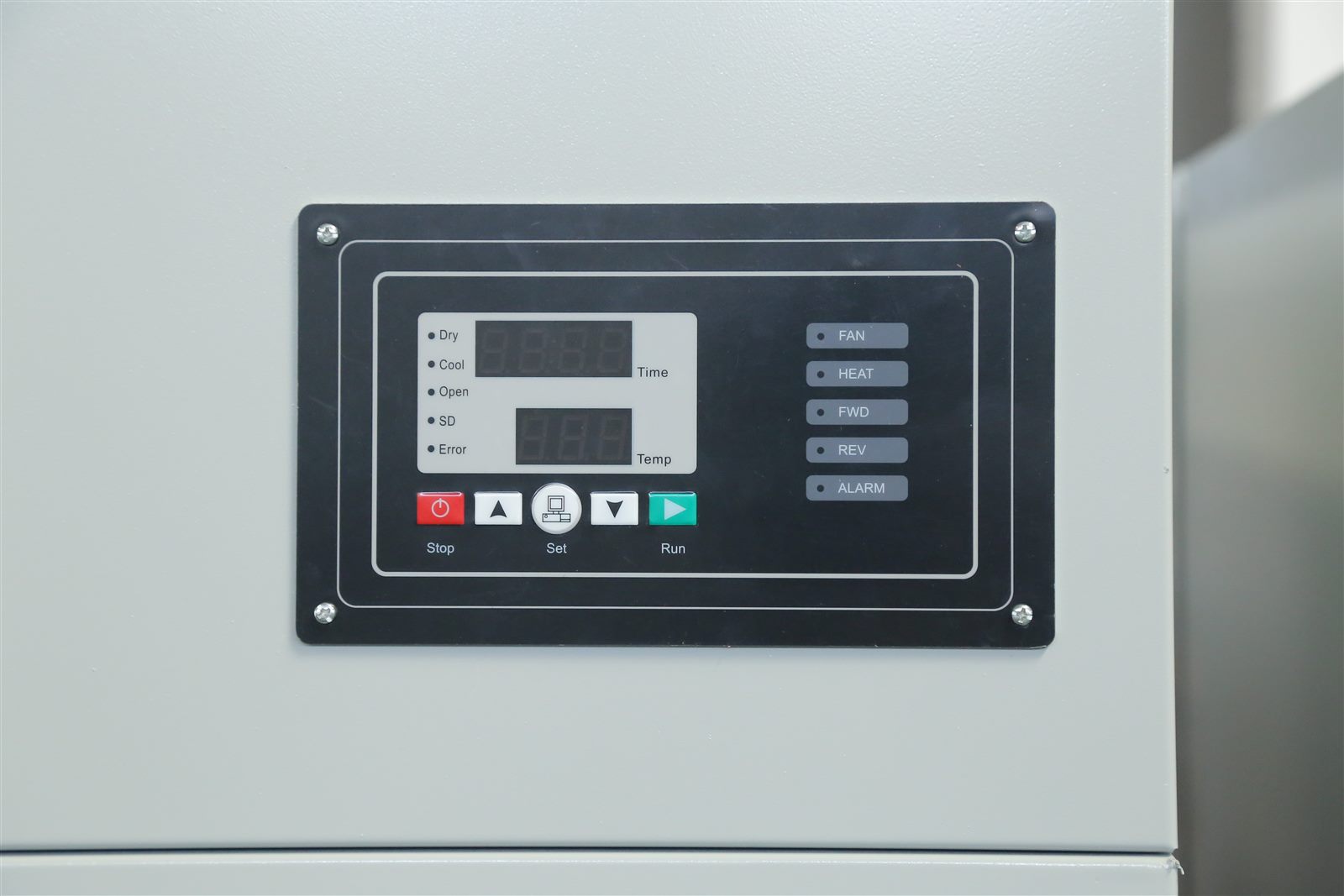

- Computer control panel for drying time, temperature, fan, heat, forward, reverse, and alarm functions.
- Available with steam pressure requirement of 0.3-0.6MPa, and electric heating power listed by model.
- Large drum structure for towels, sheets, uniforms, workwear, and mixed commercial textile loads.
Typical applications
- Hotel laundry: towels, bed sheets, duvet covers, bathrobes, table linen, and staff uniforms.
- Hospital laundry: bedding, gowns, towels, and institutional textiles after washer extractor processing.
- Commercial laundry plants: mixed textile loads where drying output must match washing and finishing capacity.
- Textile factories: batch textile drying after washing, rinsing, or process treatment.
- Uniform washing facilities: workwear, factory uniforms, school uniforms, and service garments.
HG Series model selection guide
The right industrial laundry dryer depends on daily laundry capacity, textile type, moisture after extraction, heating source, working hours, and the washer extractor capacity in front of the dryer. Configuration depends on project requirements, so please contact HAIDI for confirmation before ordering.
| HG20 / HG30 | Small-capacity models for small hotels, guest houses, small laundry rooms, uniforms, towels, and lower daily load volume. |
| HG50 | Medium-capacity model for hotel laundry rooms, schools, small commercial laundries, and mixed towel or linen loads. |
| HG100 / HG120 | Large-capacity models for hospitals, commercial laundry plants, factories, and projects that need stronger drying output. |
| HG150 / HG200 | High-capacity models for central laundry plants, textile factories, and high-volume commercial laundry projects. |
| How to choose | Estimate total laundry weight per day, check washer extractor capacity, confirm moisture level after extraction, then match dryer capacity with the planned number of drying batches. |
HG Series series specifications
The following confirmed HG Series parameters help buyers compare capacity, drum size, steam pressure, electric heating power, machine dimensions, and weight before requesting a quotation.
50kg and 120kg model highlights
| HG50 | 50kg capacity, 2.6kW motor power, 24kW electric heating power, 1250 x 1650 x 2100mm |
| HG120 | 120kg capacity, 4.4kW motor power, 42kW electric heating power, 1600 x 1850 x 2430mm |
| Best paired with | XGQ washer extractor and commercial laundry finishing equipment |
| Recommended inquiry data | Washer capacity, textile type, heating source, daily load volume, voltage |
Purchasing and installation notes
| Heating options | The current specification table lists steam pressure of 0.3-0.6MPa and electric heating power by model. Please contact HAIDI for confirmation of the suitable heating configuration. |
| Gas / electric / steam configuration | Electric heating power and steam pressure are listed on this page. Gas configuration should be confirmed according to project requirements before quotation. |
| Installation requirements | Check floor space, ventilation, heat source, exhaust arrangement, power supply, drainage near the laundry line, and maintenance access. Please contact HAIDI for confirmation. |
| Energy considerations | Drying energy use depends on textile type, load weight, extraction performance, selected heating source, room ventilation, and operating cycle settings. |

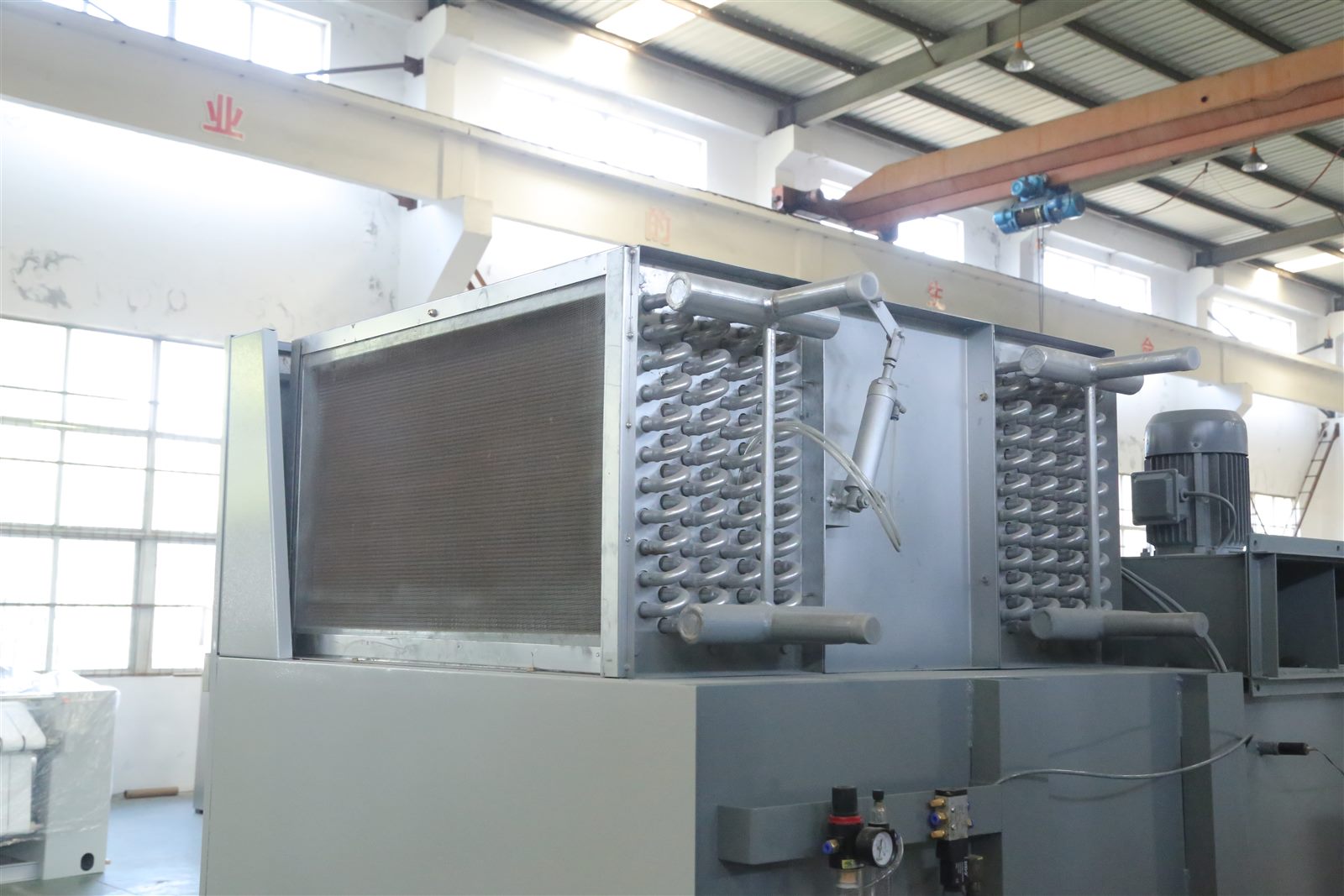

| Maintenance | Plan regular checks for drum operation, airflow path, heat exchanger area, door seal, control panel, belts, filters, and lint removal according to actual use. |
| Spare parts support | HAIDI can discuss spare parts planning for commercial tumble dryer projects during quotation and order confirmation. |
| Export packing | Export packing information should be confirmed according to dryer model, destination, shipping method, and order requirements. |
Request Tumble Dryer Quote
To receive faster industrial tumble dryer model advice and quotation, please share your laundry capacity, textile type, heating source, voltage, country, and required dryer capacity. HAIDI can help match the dryer with washer extractor and finishing equipment for the same laundry workflow.
- Daily laundry capacity or estimated kg per day
- Textile type, such as towels, bed sheets, uniforms, workwear, or hospital linen
- Heating source, such as steam or electric heating requirement
- Voltage and available utilities at the project site
- Country or destination for packing and shipping discussion
- Required dryer capacity, preferred HG model, or planned laundry room size
