Fully Enclosed Perchloroethylene Dry Cleaning Machine

Professional closed-loop dry-cleaning equipment for garment care shops, laundry stores, and dry-cleaning chains.

Request Quote

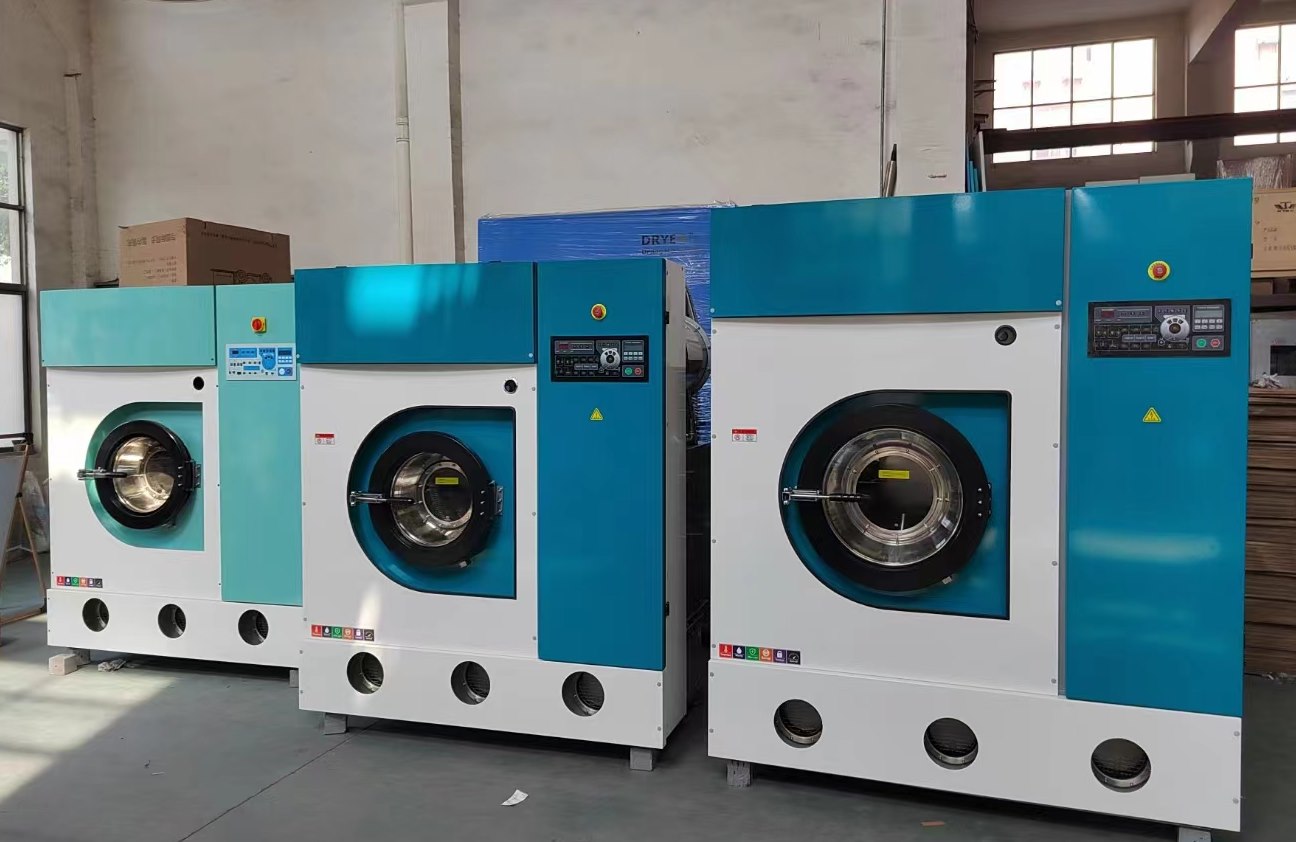

Fully enclosed perchloroethylene dry cleaning machines in workshop

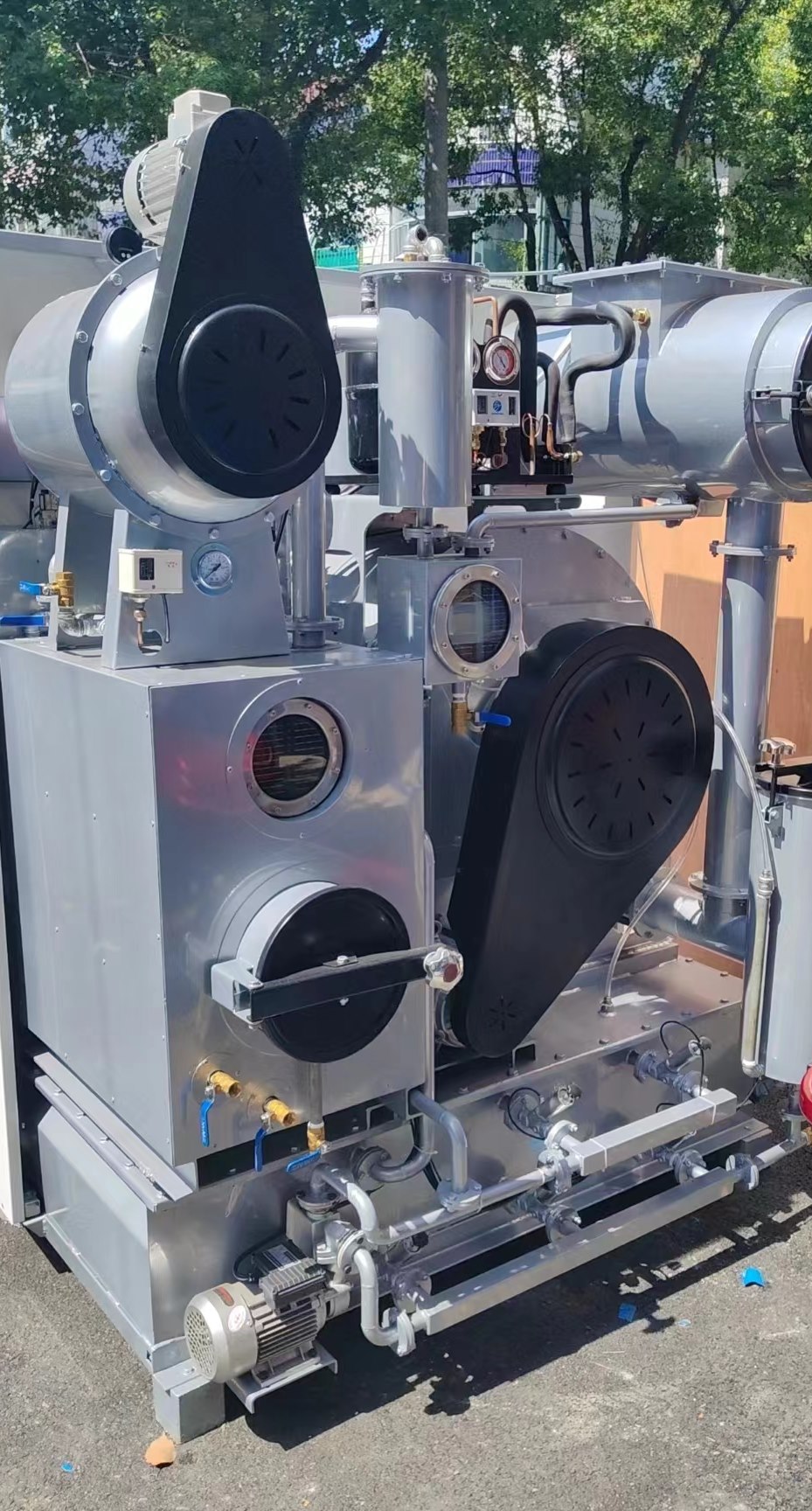

P series dry cleaning machine front view Dry cleaning machine rear system structure Dry cleaning machine production line

Product overview

The P series fully enclosed perchloroethylene dry cleaning machine is designed for professional garment care businesses that need dedicated solvent cleaning equipment for suits, coats, dresses, uniforms, and delicate garments. It is suitable for dry-cleaning stores, laundry stores adding dry-cleaning service, garment care chains, and commercial textile care providers.

Key features

  • Capacity range from 10kg to 24kg for different store sizes and garment service volumes.
  • Fully enclosed perchloroethylene dry-cleaning structure for professional garment care workflows.
  • Electric or steam heating options on smaller models, and steam heating options on larger models.
  • Suitable for suits, coats, dresses, formalwear, uniforms, and delicate textile care.
  • Practical model range for new dry-cleaning stores, laundry store upgrades, and chain store equipment planning.

P series specifications

Model P-410 P-412 P-414 P-416 P-420 P-424
Heating methodElectric / steamElectric / steamElectric / steamSteamSteamSteam
Rated capacity10kg12kg14kg16kg20kg24kg
Drum diameter750mm750mm800mm900mm900mm970mm
Drum depth400mm480mm480mm480mm580mm580mm
Drum volume178L215L252L295L368L428L
Volume ratioApprox. 18Approx. 18Approx. 18Approx. 18Approx. 18Approx. 18
Working tank 1 volume138L180L240L280L320L360L
Working tank 2 volume138L180L240L280L320L360L
Clean tank 3 volume138L180L240L280L320L360L
Distillation tank volume158L158L220L250L280L280L
Washing speed36r/min adjustable36r/min adjustable34r/min adjustable34r/min adjustable34r/min adjustable34r/min adjustable
Extraction speed520r/min adjustable520r/min adjustable500r/min adjustable500r/min adjustable500r/min adjustable500r/min adjustable
Distillation time60min60min60min60-90min60-90min60-90min
Main motor power1.5kW2.2kW2.2kW3kW4kW4kW
Liquid pump power0.55kW0.55kW0.75kW0.75kW0.75kW0.75kW
Fan power0.55kW0.55kW0.75kW0.75kW1.1kW1.5kW
Filter motor power0.37kW0.37kW0.37kW0.55kW0.55kW0.75kW
Compressor power1.1kW1.1kW1.5kW1.5kW2.2kW3kW
Drying power5.4kW5.4kW5.4kWSteamSteamSteam
Distillation power5kW6kW6kWSteamSteamSteam
Power supply220V / 380V220V / 380V220V / 380V380V / 415V380V / 415V380V / 415V
Machine width1650mm1650mm1700mm1800mm1800mm1880mm
Machine depth1300mm1350mm1380mm1380mm1480mm1560mm
Machine height2080mm2080mm2160mm2280mm2280mm2380mm
Machine weight860kg950kg1080kg1280kg1480kg1580kg

Model selection notes

Best forDry-cleaning stores, garment care shops, laundry stores, and chain operators
Capacity planningSelect by daily garment volume, store workflow, and available utilities
Common pairingDry-cleaning store equipment package, finishing table, spotting table, and garment packaging area
Inquiry dataTarget capacity, voltage, heating source, shop space, and local operating requirements
